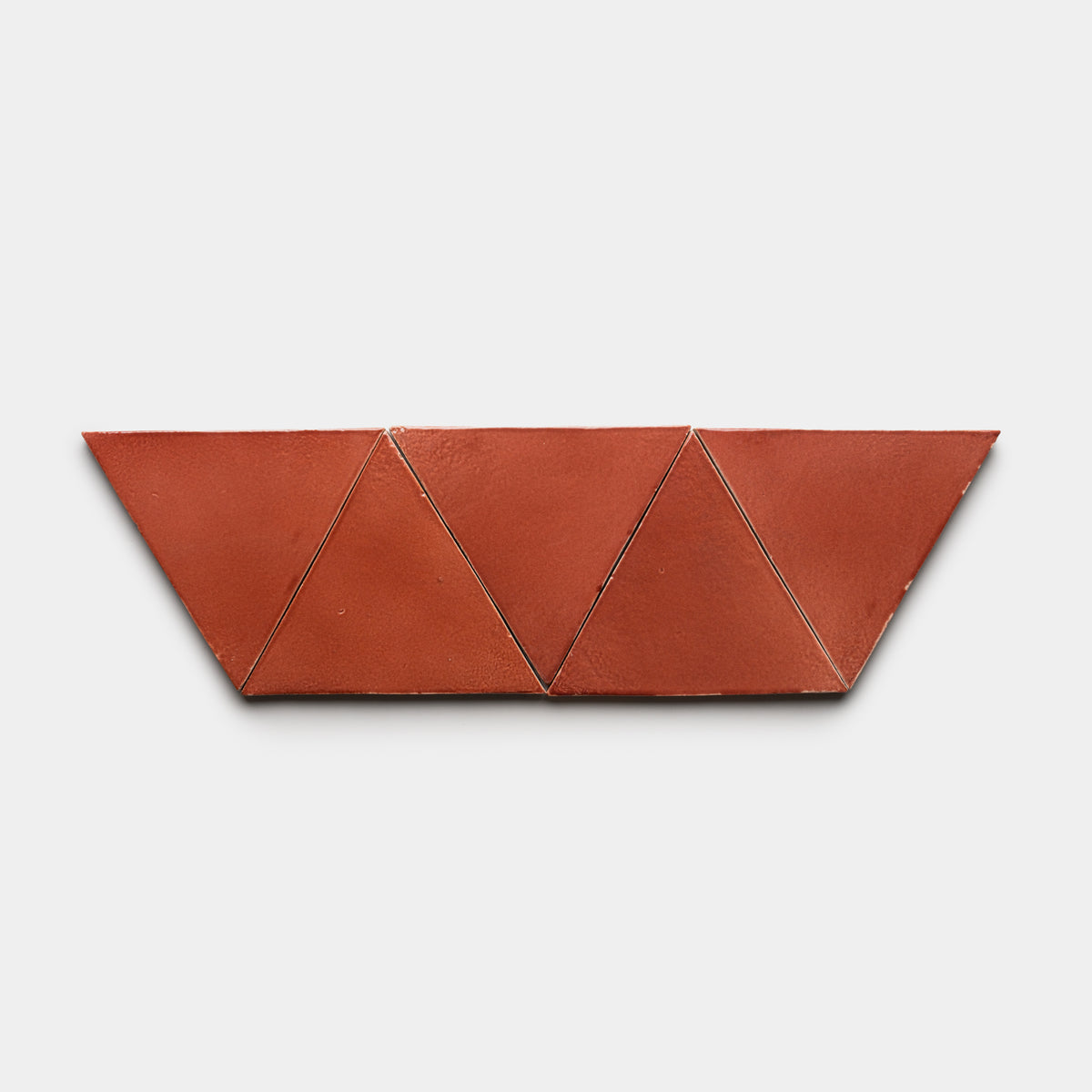

• Six Lupe Triangle tiles by Zia Tile, in terracotta color, are arranged in a horizontal row to create a geometric zigzag pattern against a plain white background.

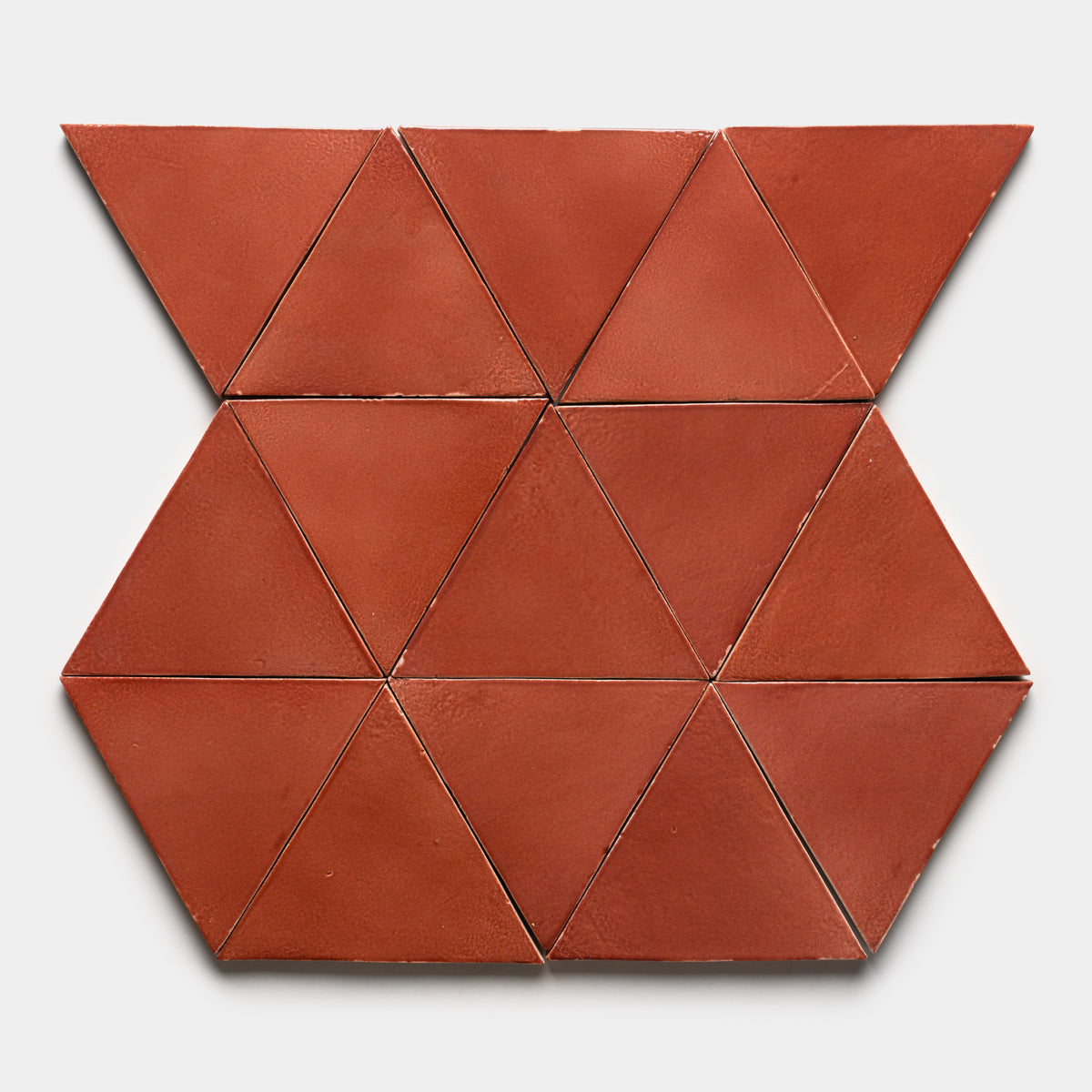

  • Zia Tile’s Lupe Triangle features a geometric, reddish-brown ceramic tile design that creates a symmetrical pattern of triangles and hexagons on a light gray background.

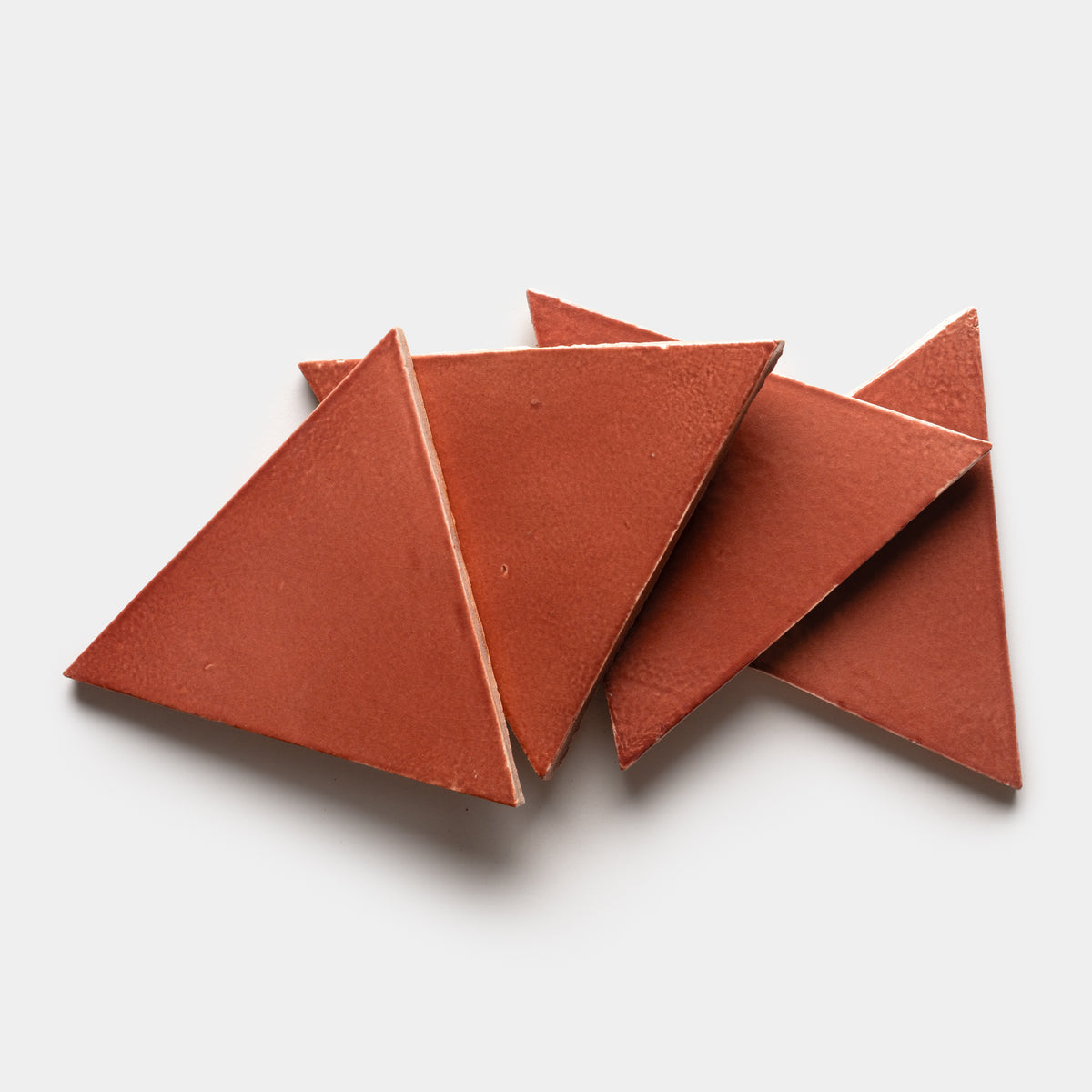

  • Four Lupe Triangle ceramic tiles by Zia Tile, featuring a reddish-brown hue and triangular shape, are overlapped on a plain white background.

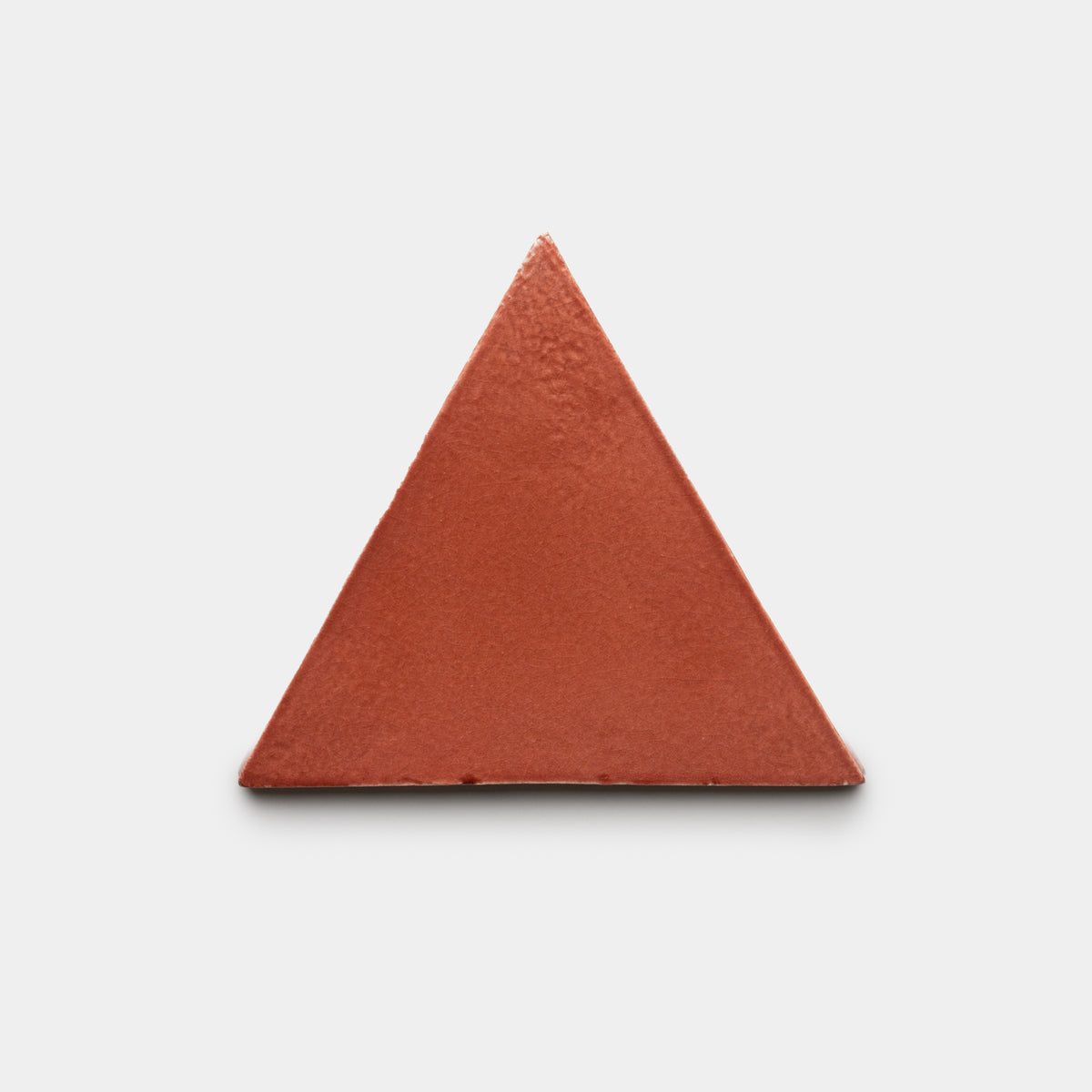

  • The Lupe Triangle by Zia Tile is a solid reddish-brown equilateral tile displayed centered on a plain white background.
  • Six Lupe Triangle tiles by Zia Tile, in terracotta color, are arranged in a horizontal row to create a geometric zigzag pattern against a plain white background.
  • Zia Tile’s Lupe Triangle features a geometric, reddish-brown ceramic tile design that creates a symmetrical pattern of triangles and hexagons on a light gray background.
  • Four Lupe Triangle ceramic tiles by Zia Tile, featuring a reddish-brown hue and triangular shape, are overlapped on a plain white background.
  • The Lupe Triangle by Zia Tile is a solid reddish-brown equilateral tile displayed centered on a plain white background.

Cotto Allende

Lupe Triangle

Color

Size/Shape

Sample Price

$3 / Sample

FULL ORDER

Price & Shipping Time

Ft² Needed

Reduce amount

Price per ft²

$24.85

Overage ? Industry standard suggests adding at least 15% overage due to tile cuts, potential breakage, or future repairs.

Price per Tile

$4.48

# Boxes

1

Total ft²

7.22

Tiles/Box

40

Total Price ? $179.42 per box.

$179.42

In Transit

Cotto Allende

7" Triangle

  • The Zia Tile Arroyo Triangle, a single plain triangular biscuit or cracker, is displayed on a light gray background.

    Arroyo

  • Six Baja Triangle tiles by Zia Tile, in beige, are arranged side by side in a horizontal row to create a zigzag pattern against a plain light gray background.

    Baja

  • The Albar Triangle by Zia Tile, a white solid equilateral triangle, is centered on a plain light gray background.

    Albar

  • Four Puebla Triangle tiles by Zia Tile in white speckled ceramic overlap on a plain light gray background.

    Puebla

  • Four brown Posada Triangle tiles by Zia Tile are arranged overlapping each other on a plain white background.

    Posada

  • Six Lupe Triangle tiles by Zia Tile, in terracotta color, are arranged in a horizontal row to create a geometric zigzag pattern against a plain white background.

    Lupe

  • A single Dorado Triangle tile by Zia Tile, in a plain light brown color and triangular shape, is centered on a plain white background.

    Dorado

  • Four Creosote Triangle crackers by Zia Tile are stacked in a scattered arrangement on a plain white background.

    Creosote

  • Four Sayulita Triangle tiles from Zia Tile in light green are arranged side by side in a straight row on a plain white background.

    Sayulita

  • The Zia Tile Valverde Triangle, a green equilateral tile with gently beveled edges, is centered against a plain white background.

    Valverde

  • Four green Primavera Triangle tiles by Zia Tile, featuring a glossy finish and slightly rounded edges, overlap on a light gray background.

    Primavera

  • Four Peyote Triangle ceramic tiles by Zia Tile, greenish in color, are arranged side by side to form a geometric pattern of three triangles and two trapezoids on a plain white background.

    Peyote

  • The Azul Triangle tile by Zia Tile is a solid blue ceramic triangle with a smooth, slightly glossy finish, shown on a plain white background.

    Azul

  • The Zia Tile Piedra Triangle features a solid dark blue equilateral triangle set against a plain white background.

    Piedra

  • Three blue Pedregal Triangle tiles by Zia Tile are placed side by side, creating a zigzag pattern on a plain white background.

    Pedregal

  • Four Roca Triangle tiles by Zia Tile in gray ceramic are overlapping each other on a white background.

    Roca

  • Five flat, matte Condesa Triangle tiles by Zia Tile in a brownish-gray shade are arranged in a scattered, overlapping pattern on a plain white background.

    Condesa

  • The Cacao Triangle by Zia Tile is a geometric metal wall sculpture featuring four connected dark bronze triangles in a linear zigzag pattern, displayed against a plain white background.

    Cacao

Tile Usage

  • Interior Floors – High Traffic

    Ex. Kitchen, Primary Bathroom, Entryway

  • Interior Floors - Low Traffic

    Ex: Guest bathroom, guest bedroom

  • Exterior Floors – Freeze or Thaw

    Outdoor surfaces that may get snow or ice

  • Exterior Floors - Non Freeze or Thaw

    Outdoor surfaces that will not get snow or ice

  • Interior Walls

    Ex: Kitchen backsplash, bathroom wall

  • Exterior Walls

    Ex: Retaining wall

  • Shower Walls + Floors

    Including steam showers

  • Pools + Spas

    Saltwater or chlorine

  • Fireplace Surround

    Note: Tiles cannot be used inside fire box

  • Radiant Heating Compatible

    Includes any heated floor elements

  • Sealing Required

    See install guide for recommended sealers

  • Interior Floors – High Traffic

    Ex. Kitchen, Primary Bathroom, Entryway

  • Interior Floors - Low Traffic

    Ex: Guest bathroom, guest bedroom

  • Exterior Floors – Freeze or Thaw

    Outdoor surfaces that may get snow or ice

  • Exterior Floors - Non Freeze or Thaw

    Outdoor surfaces that will not get snow or ice

  • Interior Walls

    Ex: Kitchen backsplash, bathroom wall

  • Exterior Walls

    Ex: Retaining wall

  • Shower Walls + Floors

    Including steam showers

  • Pools + Spas

    Saltwater or chlorine

  • Fireplace Surround

    Note: Tiles cannot be used inside fire box

  • Radiant Heating Compatible

    Includes any heated floor elements

  • Sealing Required

    See install guide for recommended sealers

How It's Made

Made from locally-sourced, organic clays, our hand crafted Cotto tiles are made just outside of historic San Miguel de Allende, Mexico. Elevating the storied tradition of terra cotta, modern day artisans hand form and fire each individual tile. The tiles’ clay formulation is mixed with water and blended to the ideal consistency, then pressed in a mold to dry for 1-2 weeks until the proper moisture level is achieved for firing. At this point, wood ash is added to the surface of our ‘Fired Earth’ tiles to give them their distinctive surface coloration.

About

Cotto (derived from the Italian 'terra cotta', or ‘baked earth’) is part of a long lineage of fired clays that date back to the dawn of civilization itself. From Egyptian water jugs to Chinese roof tiles or Roman bricks, terra cotta has been part of the human story for as long as we’ve had an alphabet. The materials in Cotto tile haven’t changed much over the millennia, while the firing process has evolved; from kiln furniture to mold designs to firing method, our handmade and high-fired Cotto is our modern take on an ancient tradition.

Installers should always wear protective face and eye coverings when working with Cotto Allende, mortar, sealants, grout and other materials associated with the tile installation process in accordance with the California Prop 65. ⚠ WARNING: Cancer and Reproductive Harm. Learn more about Proposition 65 Warnings.

Order & Shipping

Our in stock samples typically ship out from our Los Angeles Warehouse within 2 business days of order receipt.

Please select the Request A Sample button to add samples to your cart. All sample orders are limited to up to 4 per product design, and customers may order up to 10 samples total. The first 5 samples in your cart are complementary, and additional samples are $3 each. The credit for the first 5 samples is reflected on the final check out page. Our samples ship via FedEx or UPS, and the shipping cost is $8 for every 3 samples.

All standard full orders ship throughout the US and Canada using an LTL carrier service and are delivered on a pallet, curbside. If you live in Alaska, Hawaii, Canada or a country outside of the United States, please email us for a custom freight quote. If you are ordering multiple tile types, your full order will ship once all products are in stock.

Please note, all shipping timelines provided by LTL carriers are estimated delivery ranges. The carrier will call you to schedule a delivery date and time frame once the shipment arrives to their local delivery terminal.

We are excited to offer free Pick Up/Will Call from our Los Angeles Warehouse to help our local customers save on shipping costs! Once your order is ready, our team will reach out to you to schedule your pick up appointment.

For questions regarding your sample or full order delivery, please reach out to our team at info@ziatile.com.

Installation Guide

----- Read this guide, IN FULL, prior to beginning any installation of Cotto Allende -----

To ensure proper installation based on unique project and/or site conditions, clients are responsible for hiring a skilled installer that has experience in installing and sealing glazed terra cotta tiles. Zia Tile is not responsible for installation, ongoing care, or issues arising after receipt and installation of product. If client’s installer deviates from the instructions or recommendations below, this may result in costly and undesirable outcomes.

To ensure proper installation based on unique project and/or site conditions, clients are responsible for hiring a skilled installer that has experience in installing and sealing terra cotta tiles. Zia Tile is not responsible for installation, ongoing care, or issues arising after receipt and installation of product. If client’s installer deviates from the instructions or recommendations below, this may result in costly and undesirable outcomes.

Hairline cracks, also known as crazing, are common with ceramic tiles and can be expected on the surface of Cotto Allende tiles. We recommend matching the grout color to the tile color as closely as possible to minimize the appearance of crazing on the surface. Contrasting grout colors will accentuate crazing on the surface and should be avoided.

REVIEWING YOUR ORDER
Please inspect your order thoroughly, upon receipt. Zia Tile cannot be held responsible for tiles that have already been installed.

Each piece of Cotto Allende is made by hand, and extreme variations in color, shape and thickness are to be expected. Irregular edges, crazing and small hairline cracks may be present.

To account for cuts, texture, inherent variation, and potential breakage in transit, it is strongly recommended that all orders include a minimum of 15% overage to avoid costly add-on shipping and schedule delays.


BEFORE BEGINNING YOUR INSTALLATION
Residue and dust from shipping are typical. Tiles should be cleaned with a pH neutral cleaner and a soft cloth prior to beginning your installation.

Due to the inherent size and color variations of Cotto Allende, it is very important to blend the tiles from all boxes in your order and verify layout before beginning your installation. You should be an active participant in your Cotto Allende layout to select color tones and optimal variation prior to installation.


INSTALLATION
REQUIRED MATERIAL

For placing the tiles:

Sponge

Bucket

1/8" tile spacers

High quality medium-bed thin set mortar

Trowel

Mapei Flexcolor CQ grout

Grout float

Water-cooled tile saw with diamond edge blade


For cleaning and sealing Cotto tiles:

pH neutral cleaner such as Miracle Sealants Heavy Duty Cleaner (Acid Substitute)

Paint roller, paint tray, sponge and water bucket

Lint-free cotton cloth

Penetrating Sealer - 511 Porous Plus Sealer from Miracle Sealants


LAYING TILES

If cuts are required for your installation, all saw cuts must be made with a water-cooled tile saw.

FOR FLOOR INSTALLATIONS

If the subfloor is even and in good condition, a high quality medium-bed thin set is sufficient to set the tiles. Please make sure the subfloor has completely cured (usually a minimum of 30 days) to prevent efflorescence spots from depositing on the surface of the tiles as moisture evaporates through them. Uncured or unsettled sub-surfaces can cause cracks to form in the tile as the sub-surface deforms, so always ensure the sub-surface has cured properly before installing Cotto Allende tile. Use of an uncoupling membrane (such as DITRA) may also be advised.


FOR WALL INSTALLATIONS

Only install Cotto Allende tile on stable, even surfaces. In dry areas (i.e. kitchen backsplash), Cotto Allende tile may be installed directly to drywall. Never apply tile directly to a painted surface.

FOR COMMERCIAL AND/OR WET AREAS

If installing on a flooring surface in a wet or commercial area, slip resistance can be increased by increasing grout joint size and/or applying an anti-slip product after installation is complete. Always consult with your licensed installer on slip specific questions prior to installation and note that Cotto Allende has a DCOF rating of 0.48. See product spec sheet for additional information.

Evenly apply the thin set mixture to the install surface using a trowel. Wet the back of each tile with a sponge before applying the adhesive to the back of each tile, making sure to apply the mixture in the same direction in order to prevent air pockets from forming.

Lay Cotto Allende tile in accordance with the drying time required for the thin set used. Using a rubber mallet, compact the Cotto Allende tiles evenly on the adhesive to ensure consistent contact.

Press the tiles into place. Ensure the tiles are perfectly flat during installation.

Place in small sections, no larger than 2’x2’ at a time, using tile spacers to achieve the desired spacing for your design. Consistent open joints should be allowed for desired spacing – 1/8” is recommended for Cotto Allende.

Immediately wipe off any residual thin set from the surface of the tiles. Thin set can be incredibly difficult to remove without damaging the tiles if left too long.

After the tiles have been laid, allow the thin set at least 48 hours to cure before sealing and grouting.


PRE-GROUT SEALING

Cotto Allende tiles must be sealed on-site. Use a pH neutral cleaner before sealing; use of acidic cleaners will damage the tiles and should be avoided.

After laying the tile and prior to grouting, apply 511 Porous Plus in thin layers wiping off any excess sealer before it dries. Do not over-seal as thick or excessive application of sealant can dry unevenly and result in an undesirable waxy film on the surface of the tiles. Allow sealer to cure, typically 1-2 days; always follow the sealant manufacturer’s application instructions.

The sealer will also act as a grout release. Do not proceed to grouting unless your sealer is fully cured!


GROUTING

Grout color is an important design decision – we recommend matching your grout color as closely to the color of your tile as possible.

Using MAPEI FLEXCOLOR CQ GROUT, fill in the gaps between the tiles with a rubber grout float. Grout in small areas, no larger than 2’x2’, at a time. DO NOT grout the entire surface at once, as the tiles can stain from excess grout that is extremely difficult to remove later. Instead, grout small areas and immediately wipe away the excess grout as you go.

Clean the tiles with pH neutral detergent, removing any residual mortar or debris using a wet-vac or squeegee. Never leave spills, drips, footprints, or any other marks on the tiles prior to sealing.

Allow the grout to cure, usually 48 hours.


TOP-COAT SEALER

Wet applications need to be re-sealed with the 511 Porous Plus Penetrating Sealer as the final step of installation. This step will protect grout from continuous moisture exposure.

OPTIONAL GROUT SEALING

If you wish to seal your grout, do so in accordance with the grout and sealant manufacturer instructions.

ALWAYS cover the tiles with durable paperboard during and after installation to prevent damage and/or staining of the tiles until construction is complete.


TRIM
We recommend installing Cotto Allende from floor to ceiling or bringing drywall flush with the finished surface of your tile to eliminate the need for trim.

If you have an exposed edge that needs to be finished in your design, we recommend having your experienced installer miter the tile or add a thin layer of grout to any exposed edge.

If you do require trim, we recommend Schluter strips, which can be found at www.schluter.com.


ONGOING MAINTENANCE
CLEANING

Vacuum or sweep tile regularly to remove abrasive material that can scratch the surface.

Floors and walls can be wiped or mopped with warm, clean water and a pH neutral cleaner.

Cotto Allende tiles may be cleaned like most types of glazed ceramic tiles. Neutral pH products are recommended for cleaning. For regular cleaning, we recommend Miracle Sealants pH Neutral Tile and Stone Cleaner.


RE-SEALING

Cotto Allende tile in wet areas should be re-sealed at least every year, or as often as needed depending on traffic and wear, in accordance with sealant manufacturer’s instructions.

INSTALLATION SAFETY

Installers should always wear a protective face covering (e.g., dust mask) and eye protection when unpacking, cutting and installing Zia Tile products as well as working with the mortar, sealants, grout and other materials associated with the tile installation process in accordance with California Prop 65. WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. If extensive cutting is required during installation, Zia Tile recommends this work be done outside or in a well-ventilated area. Finally, always be sure to wash your hands well with soap and water after working with tiles and before eating.

VARIATION SCALE

A row of squares in varying shades from light to dark above a scale labeled None, Low, Moderate, High, Very High, with an arrow pointing to Moderate.

Details

Noticeable variations in size, color, tone, and surface texture are characteristic in handcrafted Cotto Allende tiles and should be expected in every order. Example images shown are representative of this tile, but may not display all potential variation.

Please prepare for some unevenness in shape, due to the hand-shaping and firing of Cotto Allende. Grout spacing of 1/8” will help to align the tiles, and installers should trim the tile edges for the most precise grout lines. We recommend a minimum of 15-20% overage, to best curate your installation for your desired aesthetic.

Size

6.75” 7.7”

Thickness

5/8”
